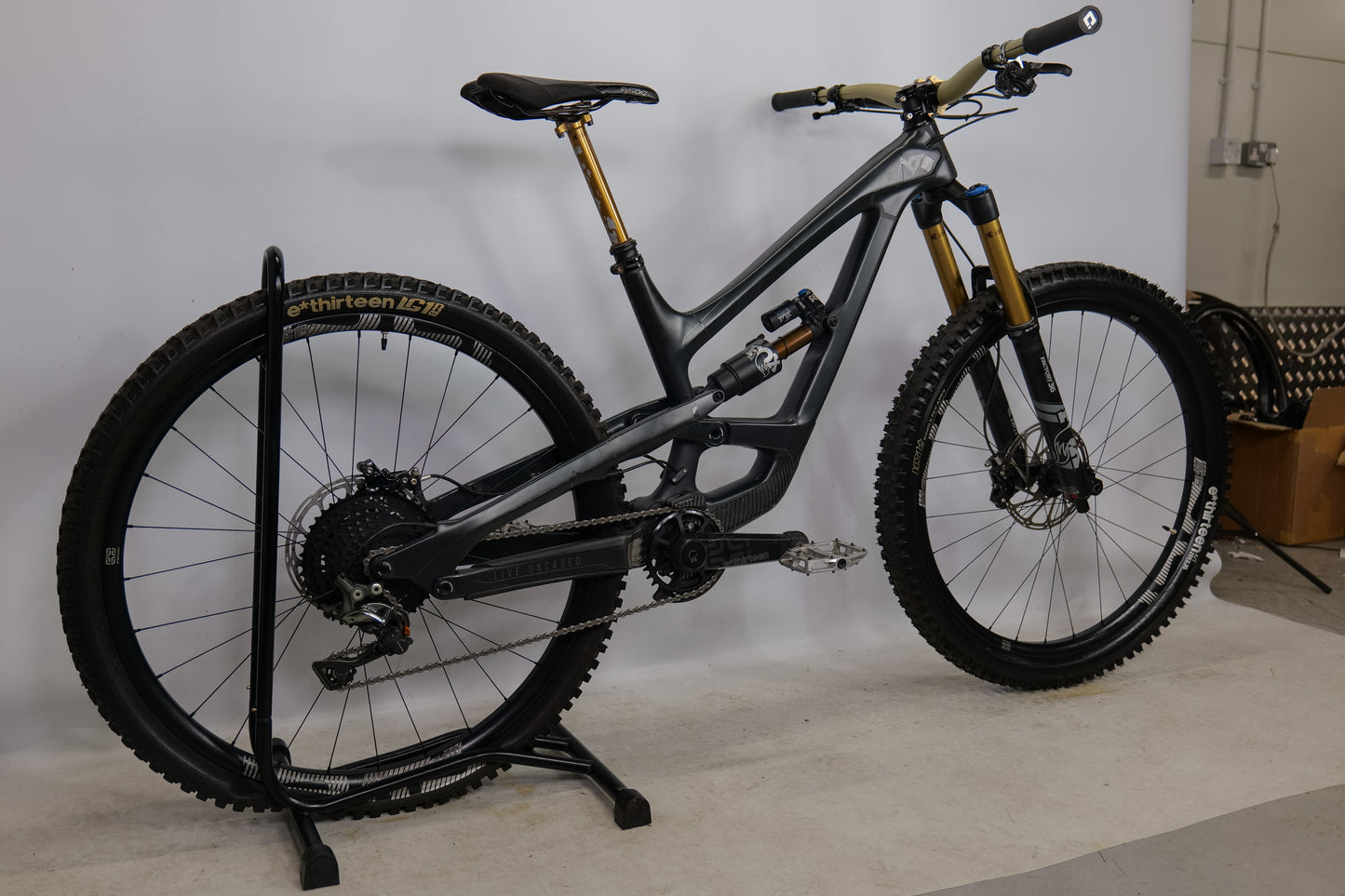

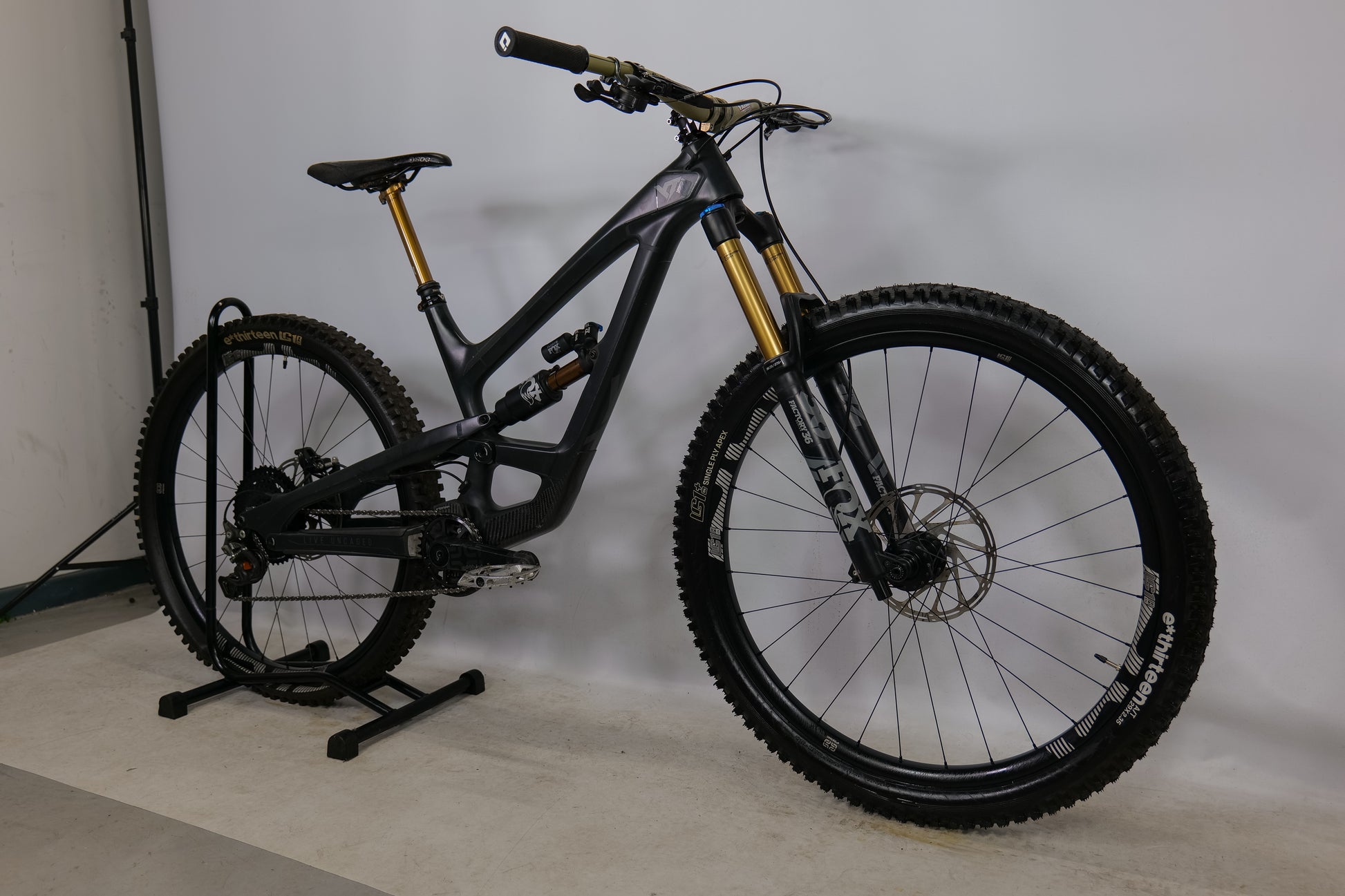

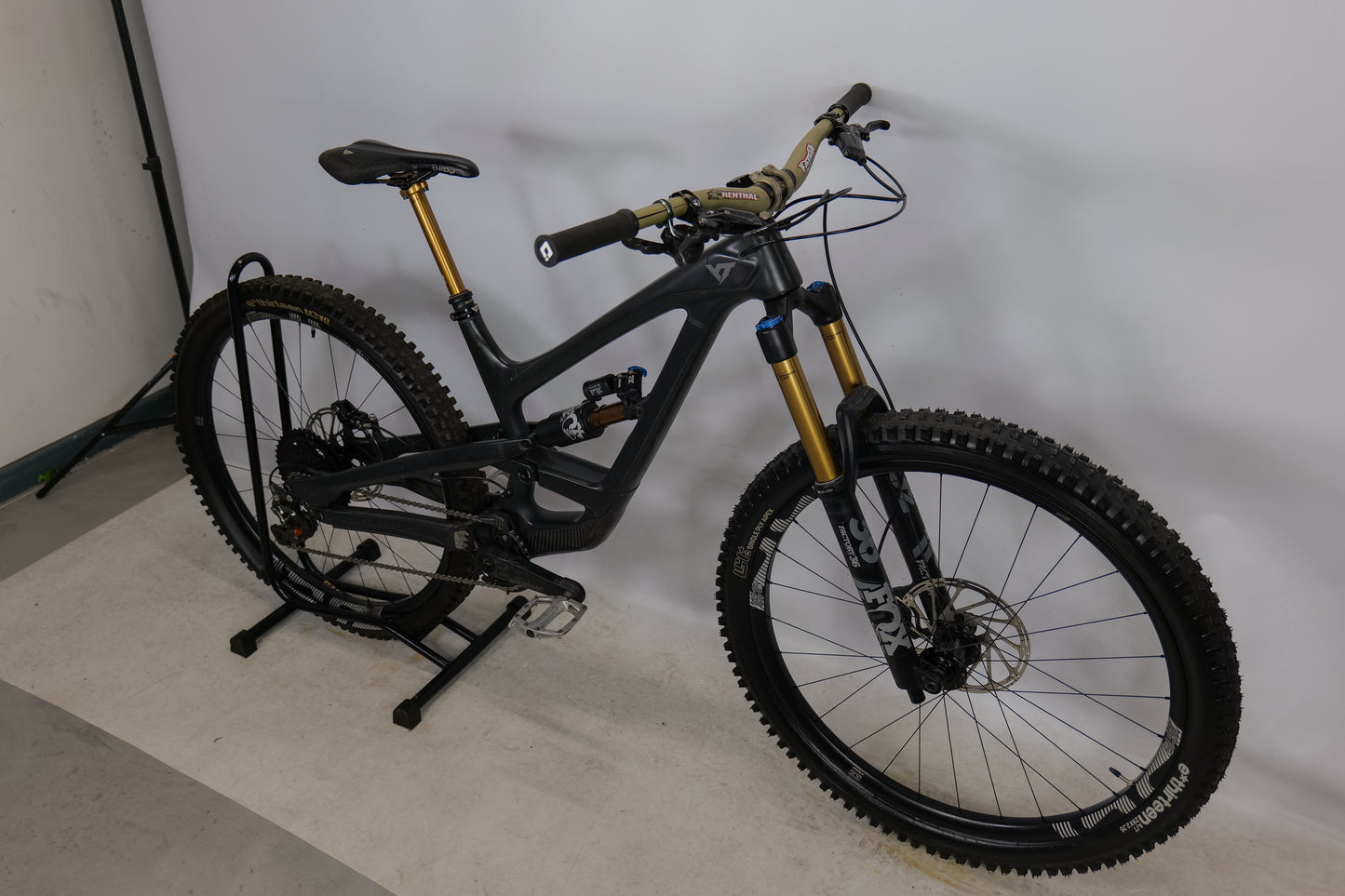

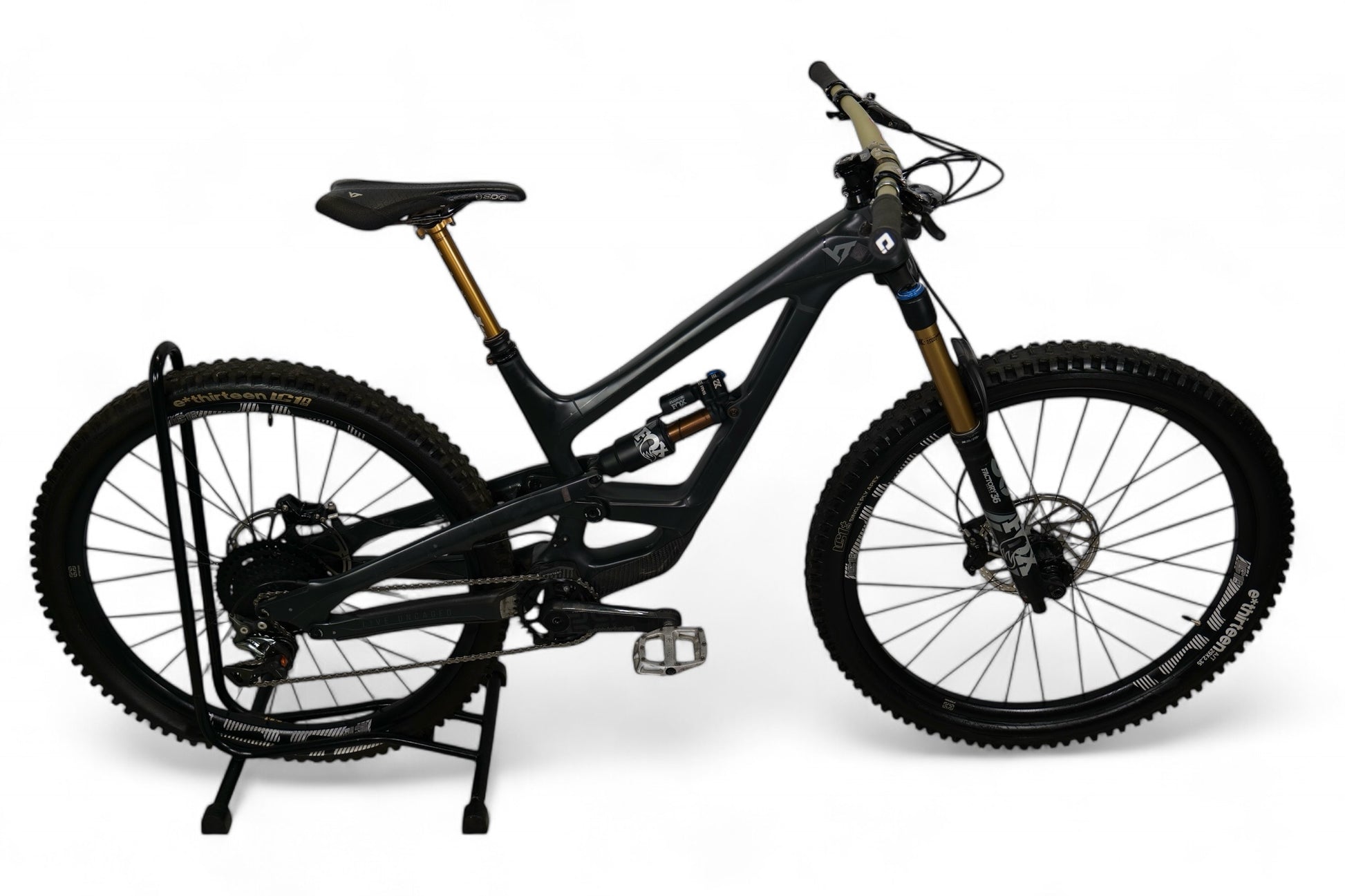

Model Year
|
2019
|
|
Riding Type
|
Freeride / Bike Park
|
|
Rider
|
Unisex
|
|
Size
|
Medium
|
|
Wheel Size
|
27.5" (650b)
|
|
Frame Material
|
Carbon Fiber
|
|

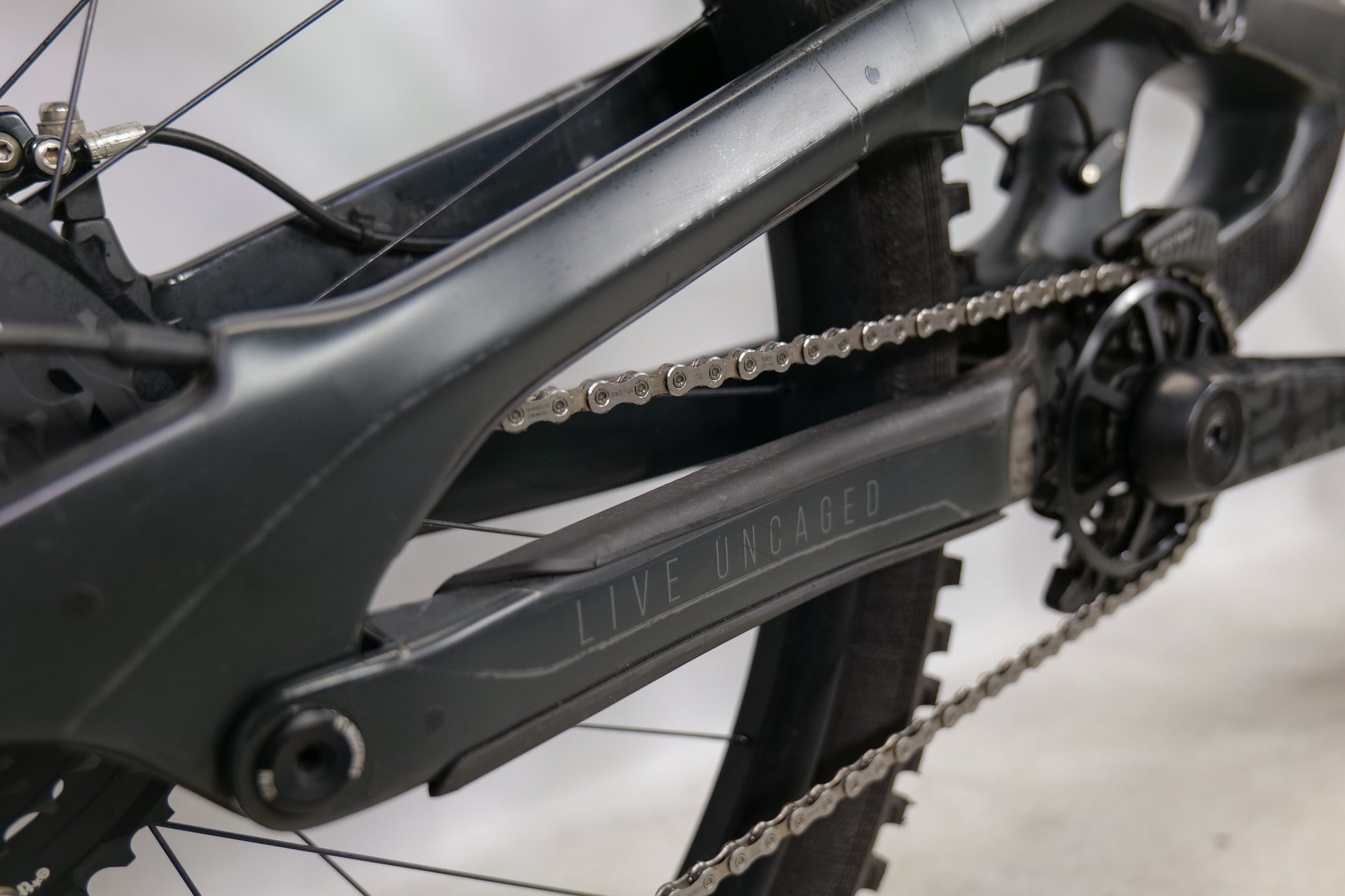

Frame Material Details
|
High modular carbon fiber, horst link suspension layout, down tube, seatstay, chainstay protection
|
|
Rear Travel
|
180mm
|
|

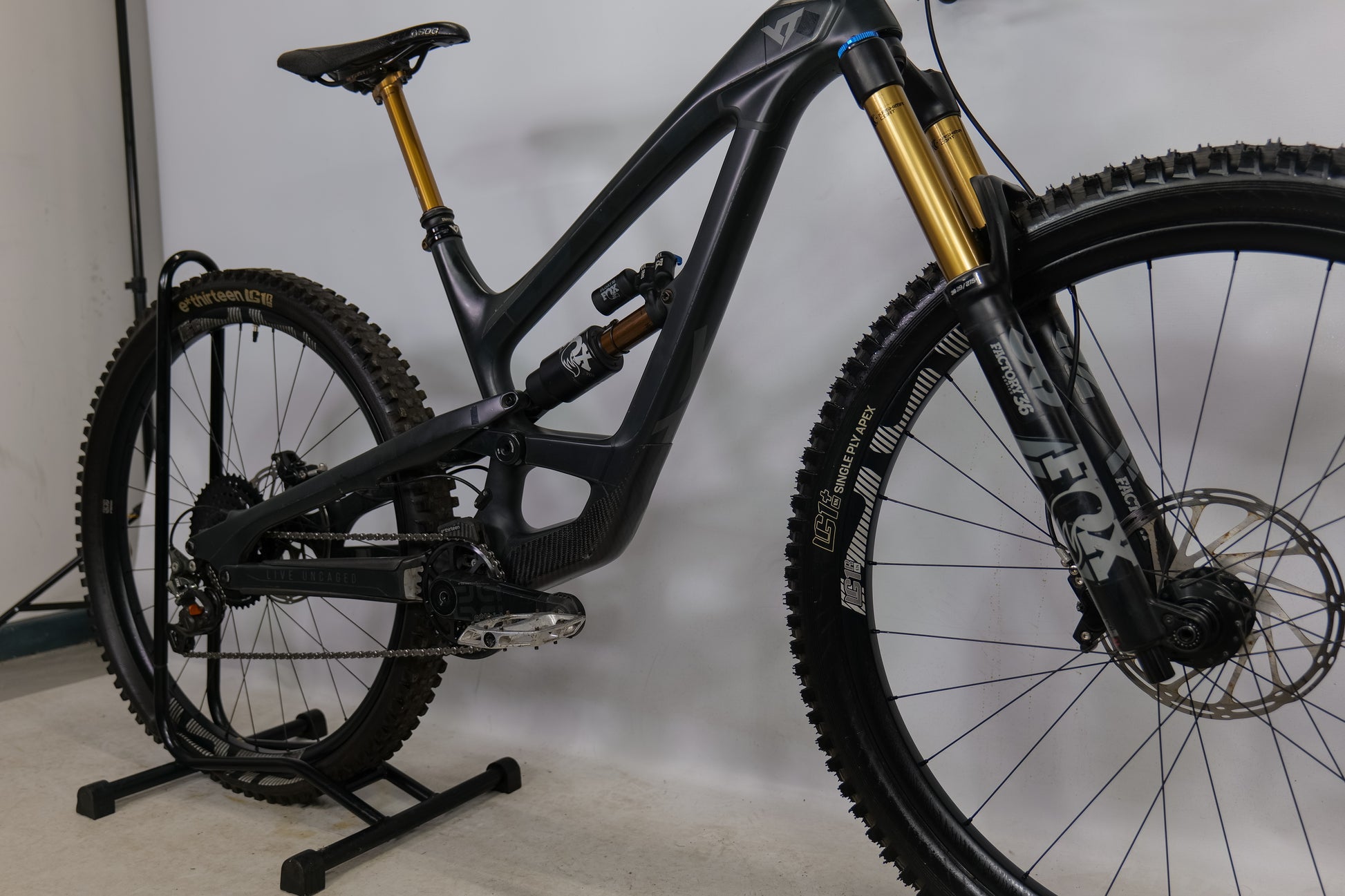

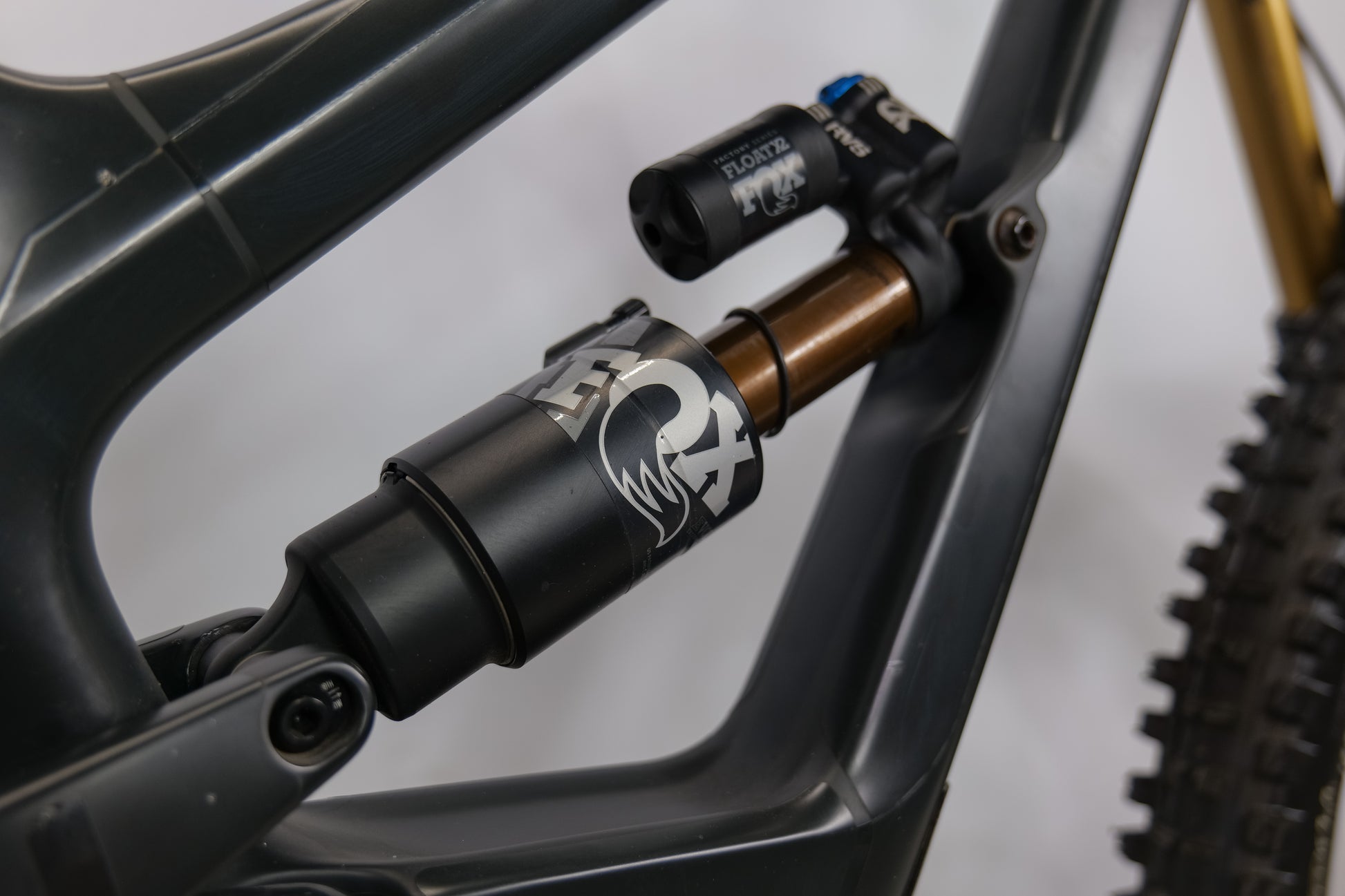

Rear Shock
|
FOX Float X2 Factory, 2 position compression lever, 250mm x 75mm
|
|
Fork
|
FOX 36 Float Factory, 15mm x 110mm quick release, 44mm offset
|
|
Fork Travel
|
180mm
|
|

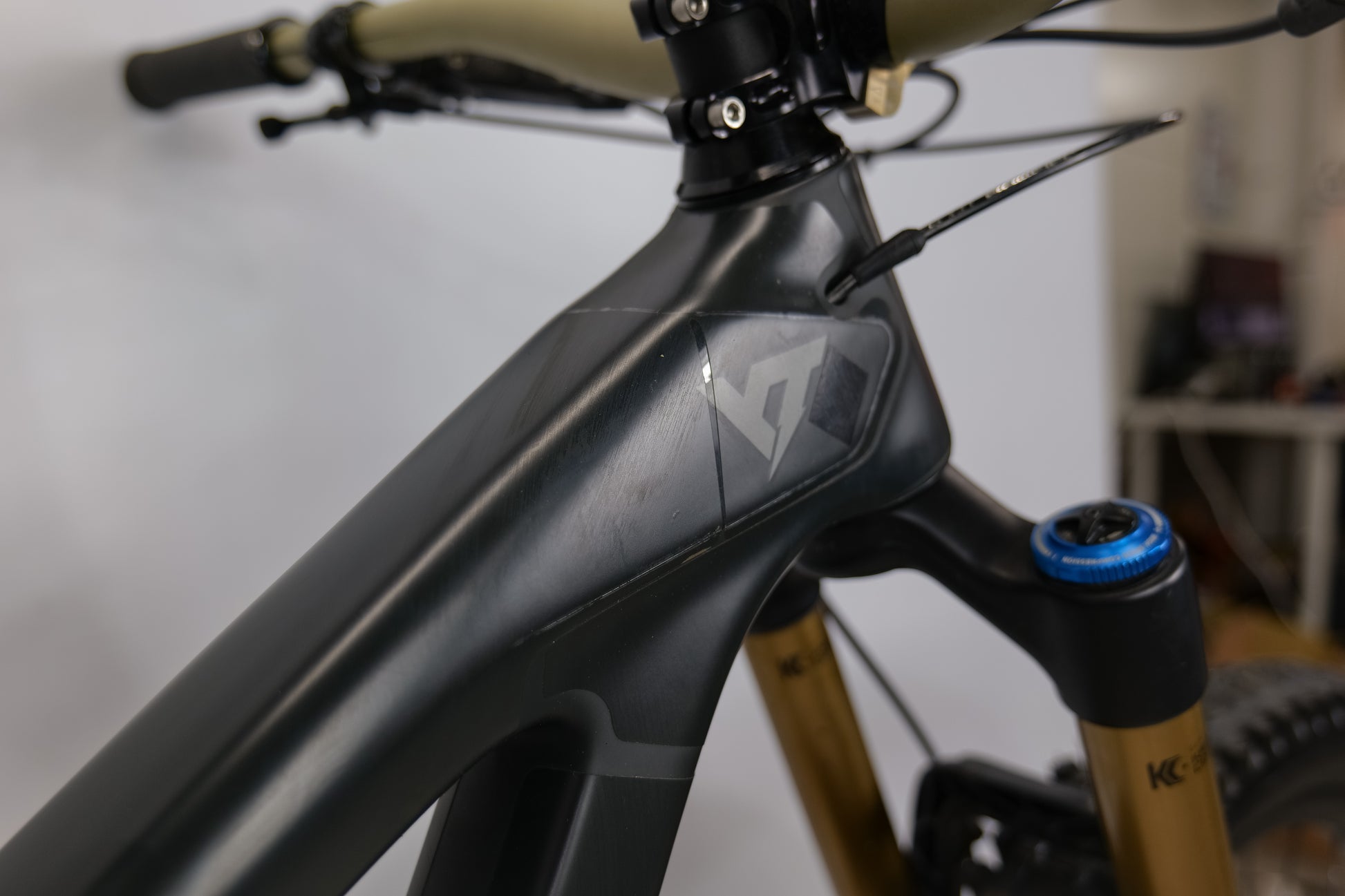

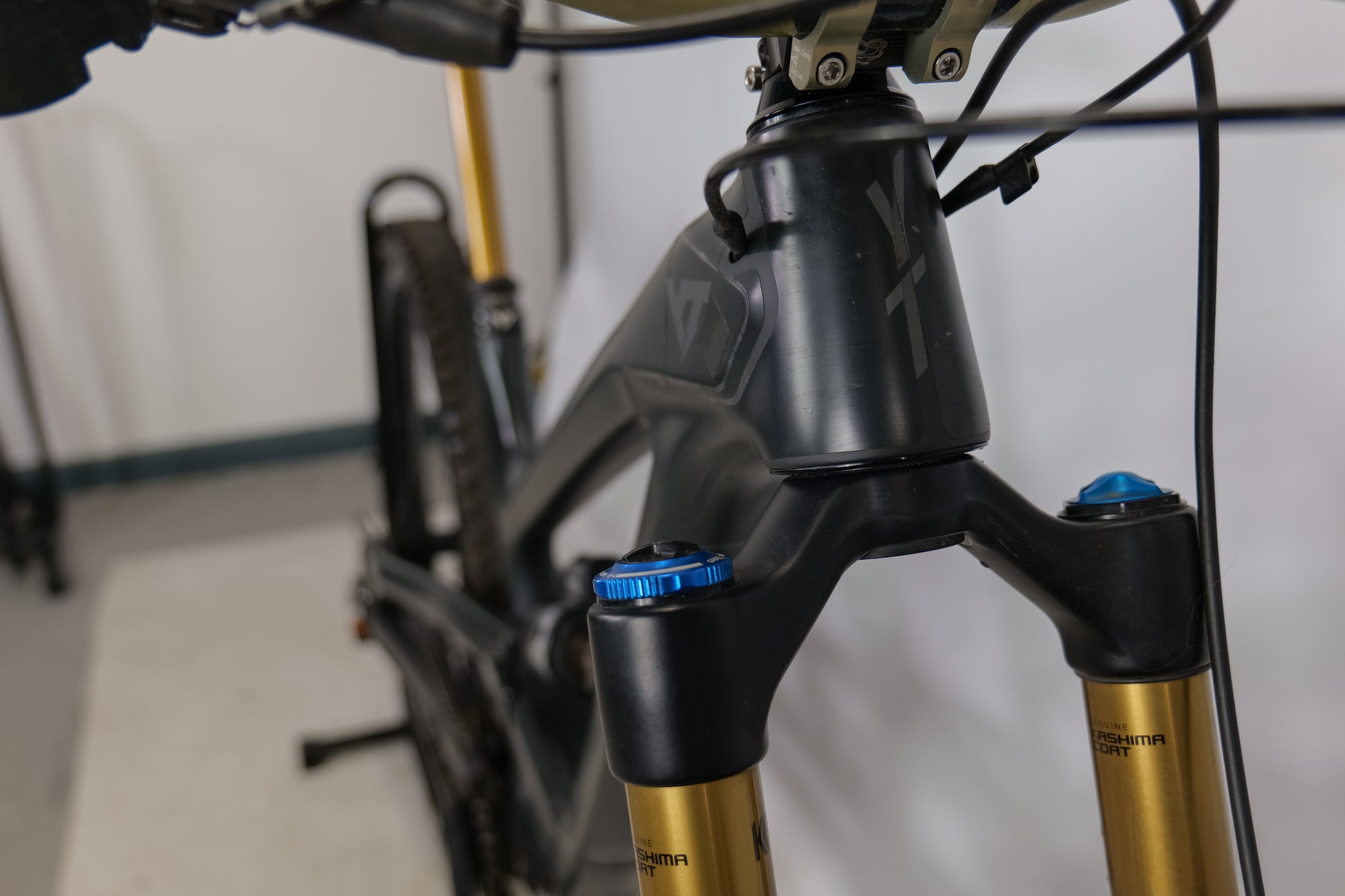

Head Tube Diameter
|
Tapered, 1.125" top, 1.5" bottom
|
|
Headset
|
Acros AZX-203
|
|

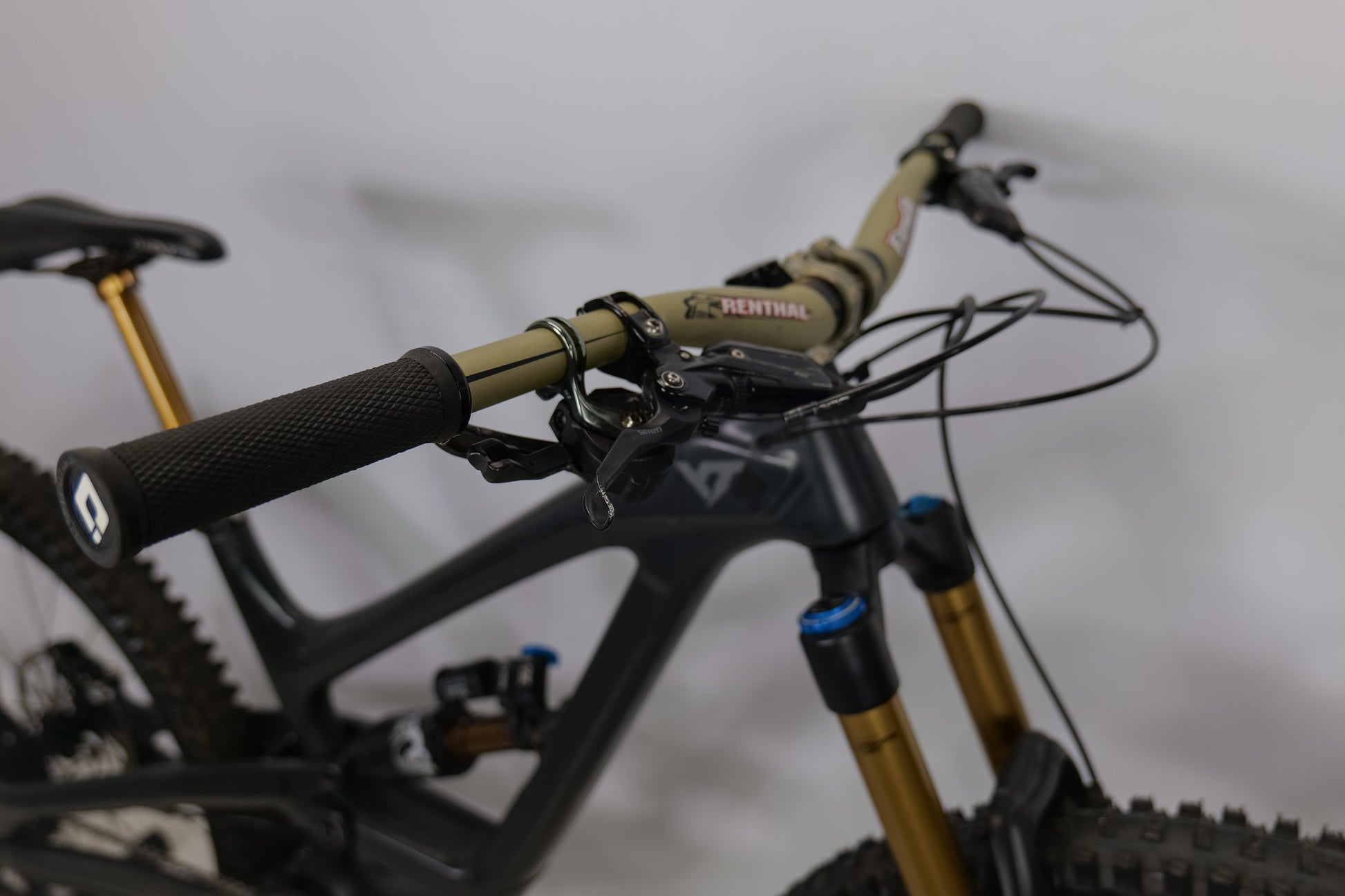

Handlebar
|
Renthal Fatbar Carbon 35, 800mm width, 30mm rise
|
|
Stem
|
Renthal Apex 35, 40mm length
|
|
Grips
|
ODI Elite Motion, lock-on
|
|
Brakes
|
SRAM Code RSC, 200mm rotors
|
|
Brake Levers
|
SRAM Code RSC
|
|
Drivetrain
|
1x
|
|
Shifters
|
Shimano XTR, 11-speed
|
|
Front Derailleur
|
N/A
|
|

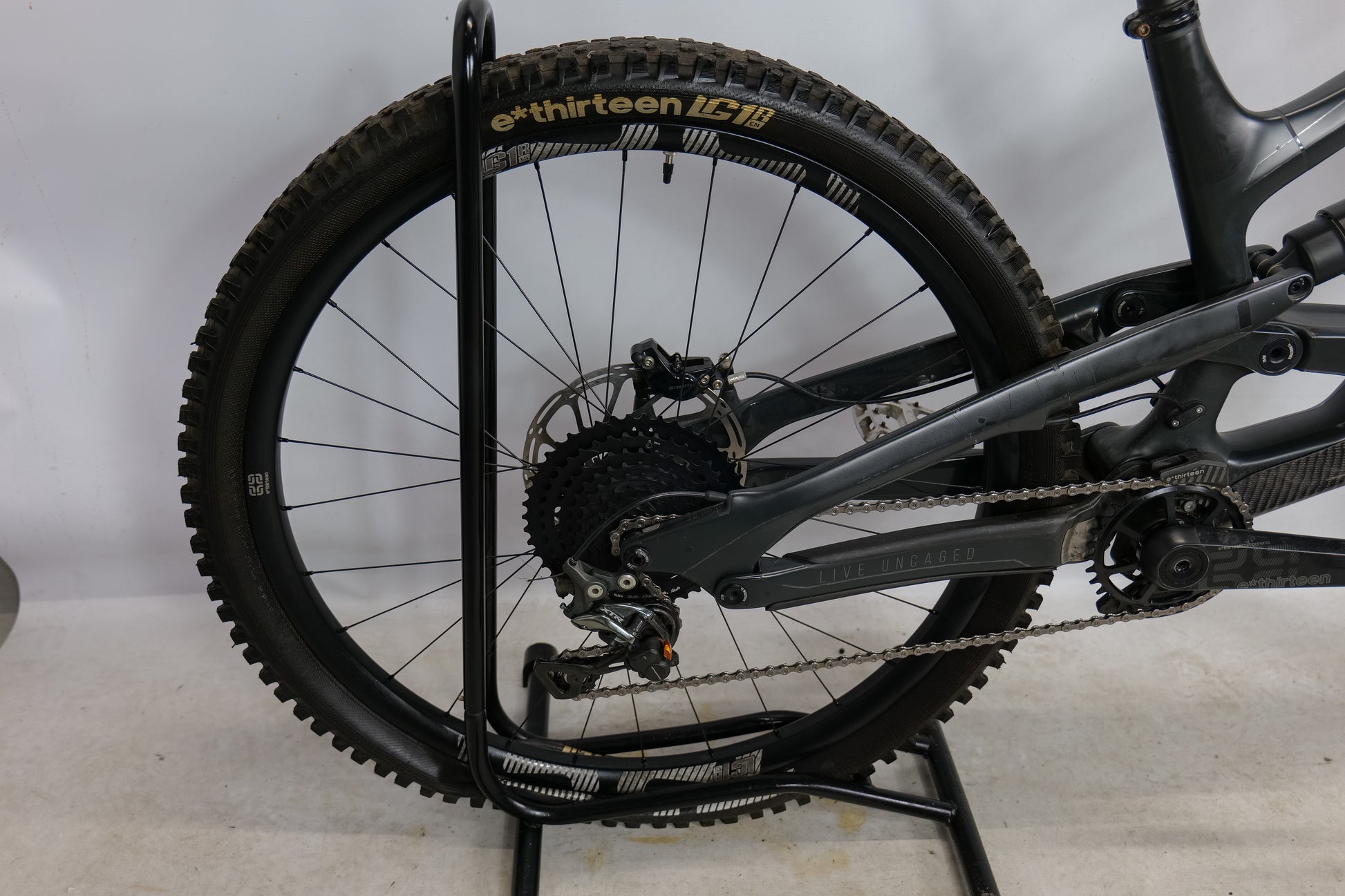

Rear Derailleur
|
Shimano XTR Shadow Plus, 11-speed
|
|
ISCG Tabs
|
ISCG05
|
|

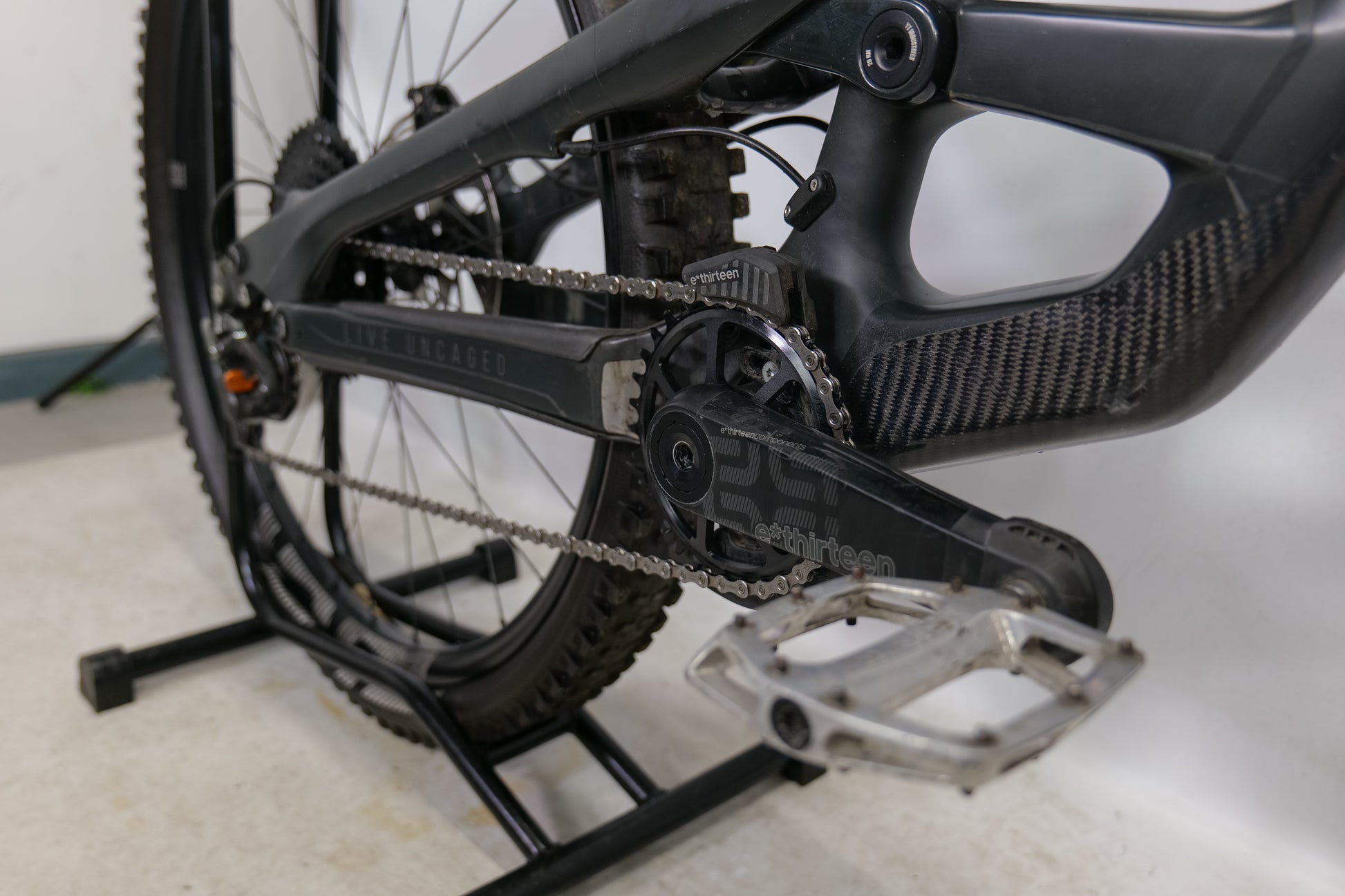

Chainguide
|
e*thirteen TRS Plus, compact slider, 28-34 tooth compatible
|
|
Cranks
|
e*thirteen LG1 Race Carbon, 170mm length, boost spacing
|
|
Chainrings
|
e*thirteen 32 tooth
|
|
Bottom Bracket
|
e*thirteen BB92, pressfit
|
|
Pedals
|
N/A
|
|
Chain
|
Shimano CN-HG601-11
|
|
Cassette
|
e*thirteen TRS Plus, 9-46 tooth, 11-speed
|
|

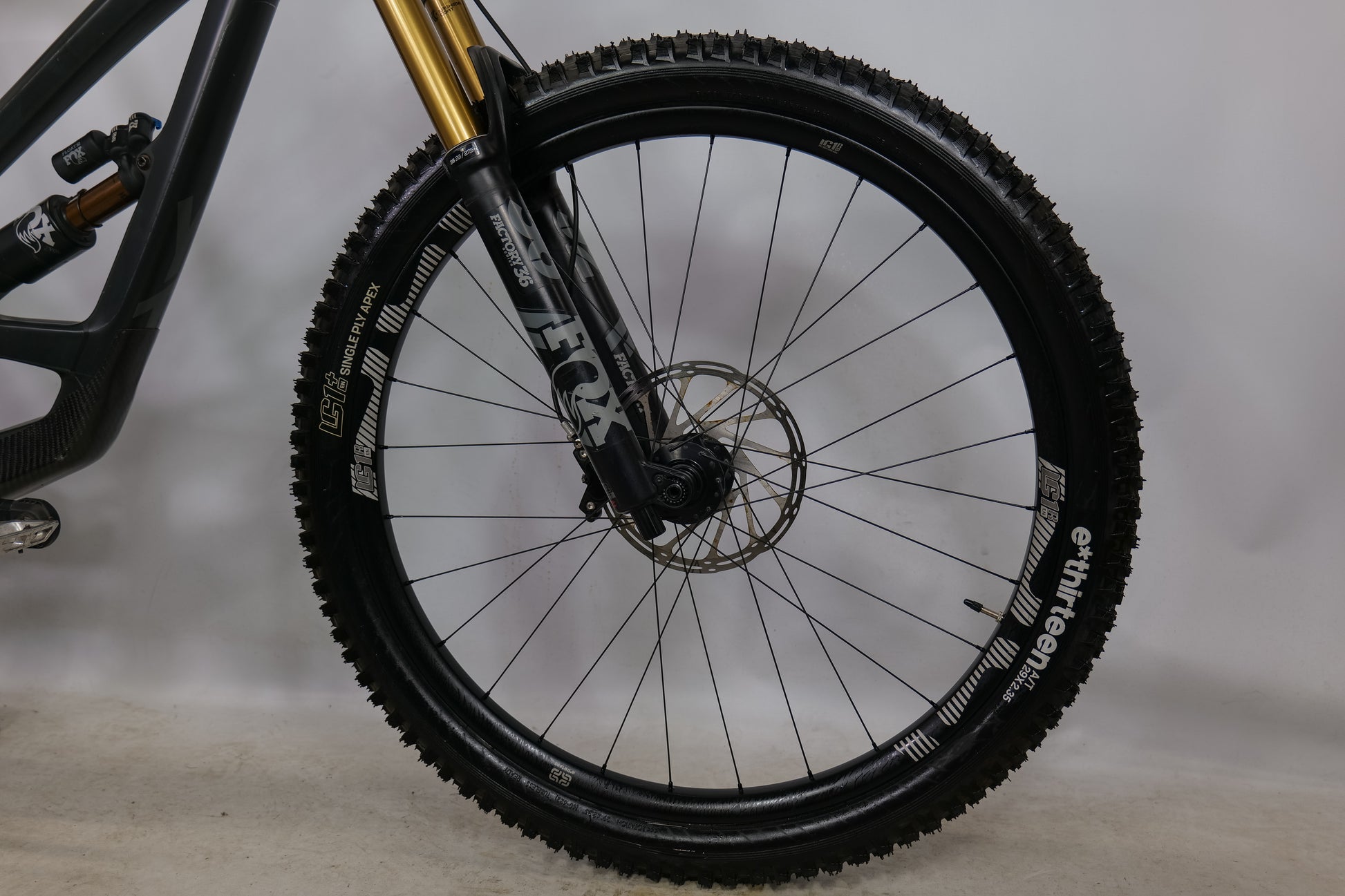

Rims
|
e*thirteen LG1 Race Carbon, 31mm width
|
|
Hubs
|
e*thirteen LG1 Race Carbon, 110mm x 15mm front, 148mm x 12mm rear
|
|
Spokes
|
|
|
Tires
|
e*thirteen LGR 27.5" x 2.35" front, e*thirteen LG1 Plus 27.5" x 2.35" rear
|
|
Saddle
|
SDG Radar MNT, silver
|
|
Seatpost
|
FOX Transfer Factory, 125mm, 150mm travel options
|
|
Seatpost Diameter
|
31.6mm
|
|
Seatpost Clamp
|
Standard, single bolt
|
|
Rear Dropout / Hub Dimensions
|
148mm x 12mm
|
|
Max. Tire Size
|
|
|
Bottle Cage Mounts
|
No
|
|
Colors
|
Deep Petrol and silver, Matte black glossy black and silver
|
|
Warranty
|
3 years main frame, 2 years seatstays and chainstays
|
|
Weight
|
29.5 lb 0 oz (13,381 g)
|
|
Miscellaneous
|
Includes Icetoolz toolset containing a torque wrench, shock pump, allen key, and anti-slip paste
|
|
Price
|
$5,499.00
|
