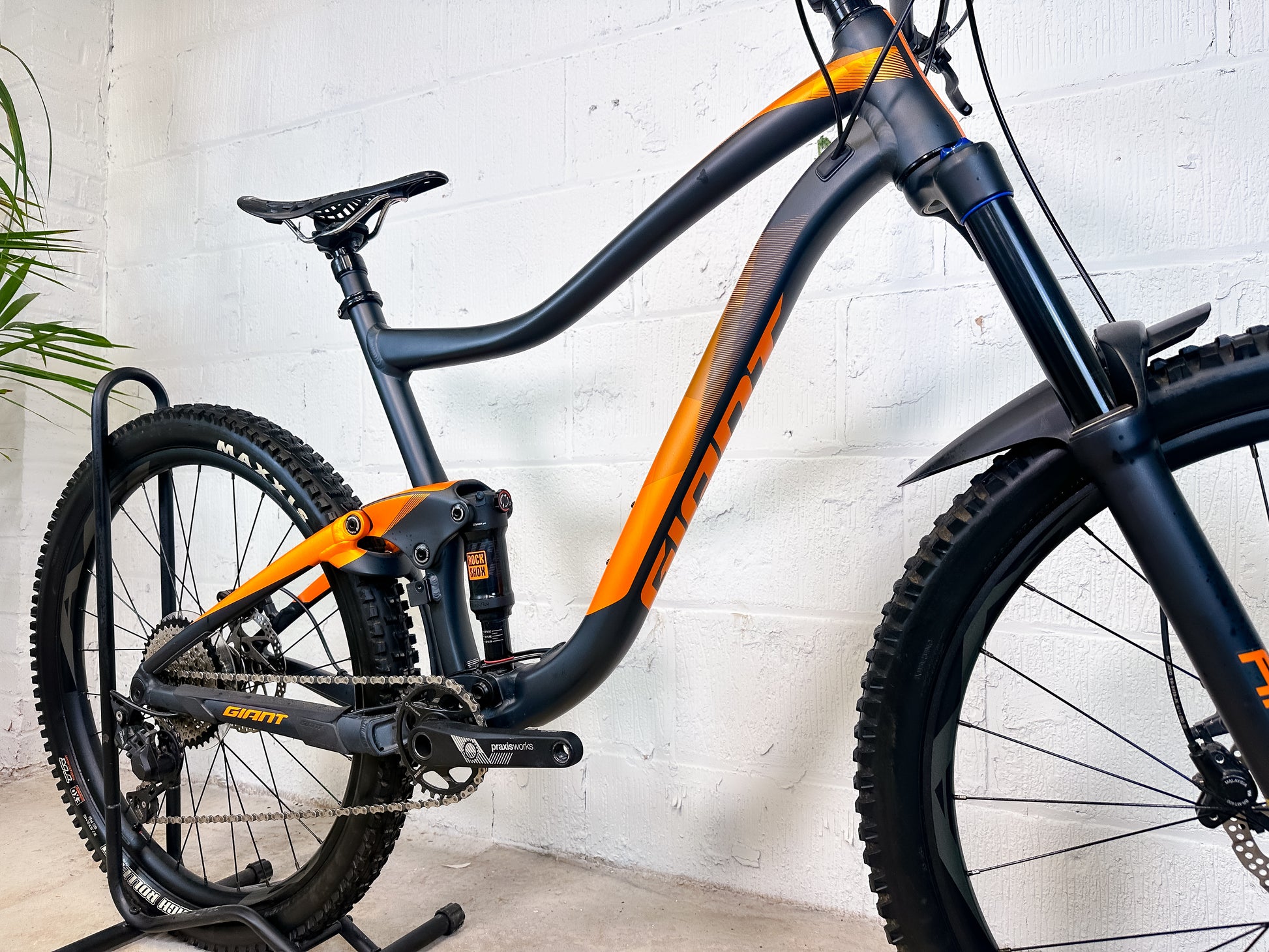

Frame Material Details
|
ALUXX SL 6011 aluminum frame, Advanced Forged composite rocker arm
|
|
Rear Travel
|
140mm
|
|

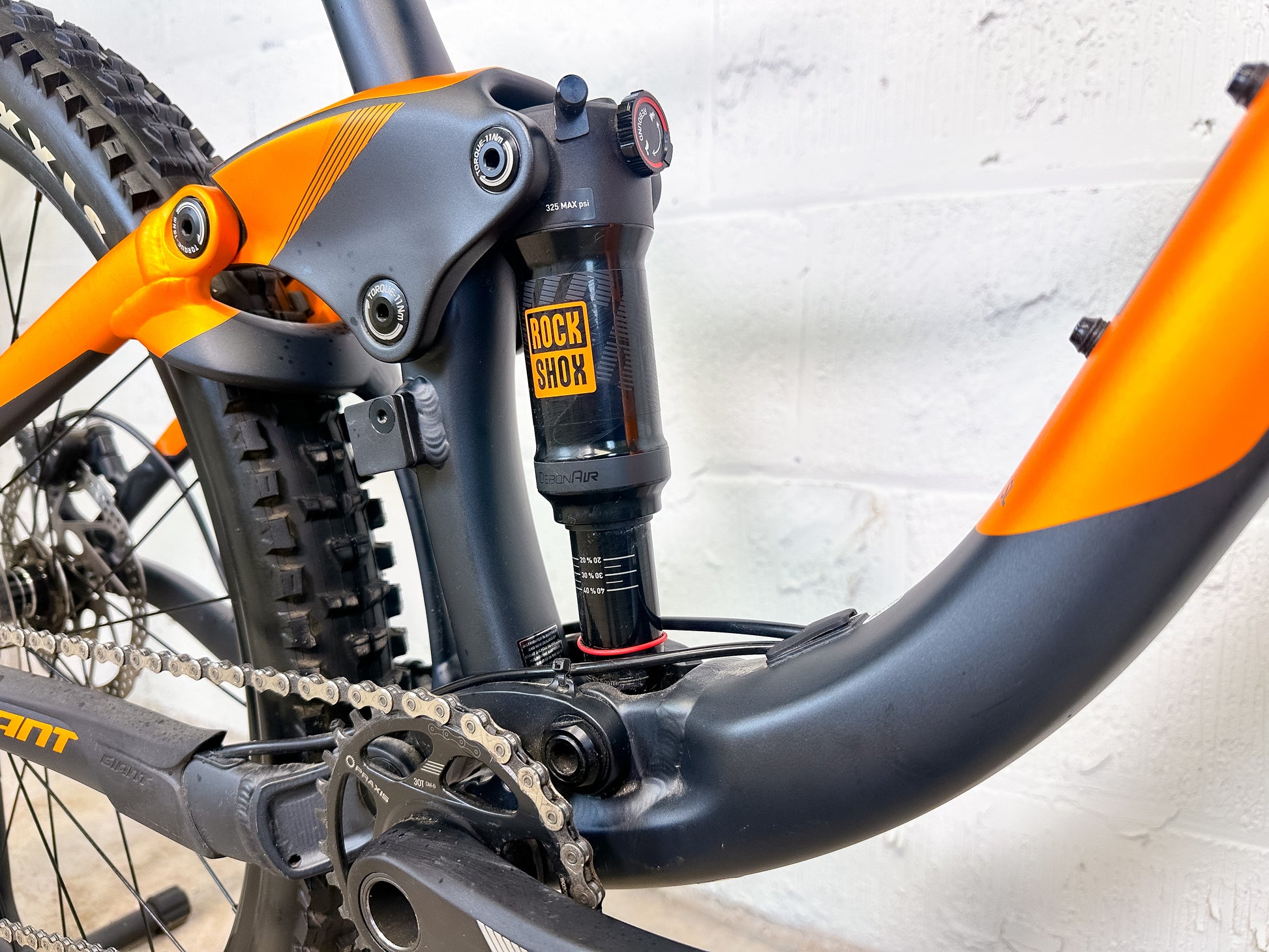

Rear Shock
|
RockShox Deluxe R, trunnion mount
|
|

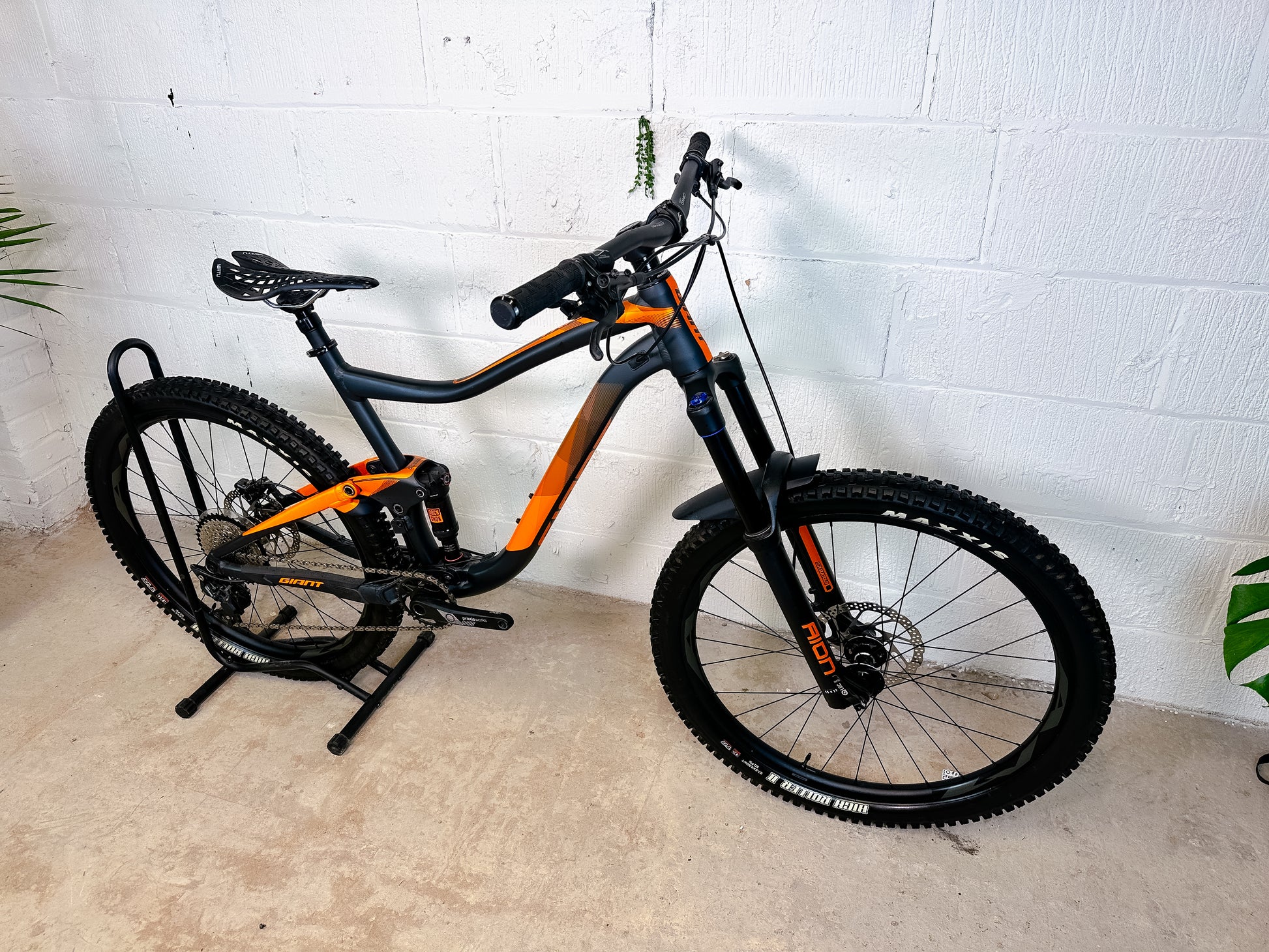

Fork
|
Suntour AION 35 RC DS, 15x110mm Boost axle, tapered steerer
|
|
Fork Travel
|
150mm
|
|

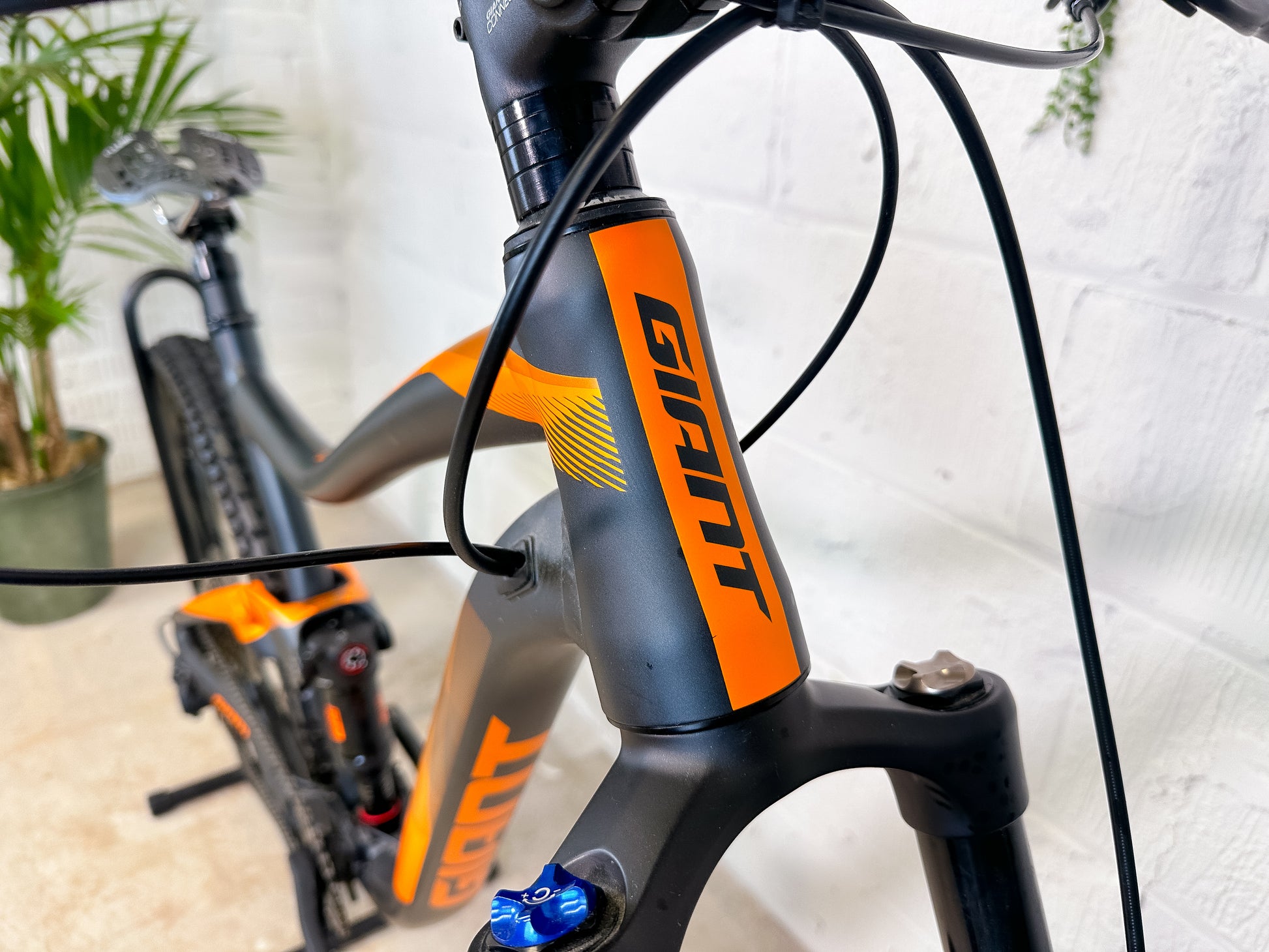

Head Tube Diameter
|
Tapered, 1.125" top, 1.5" bottom
|
|
Headset
|
|
|

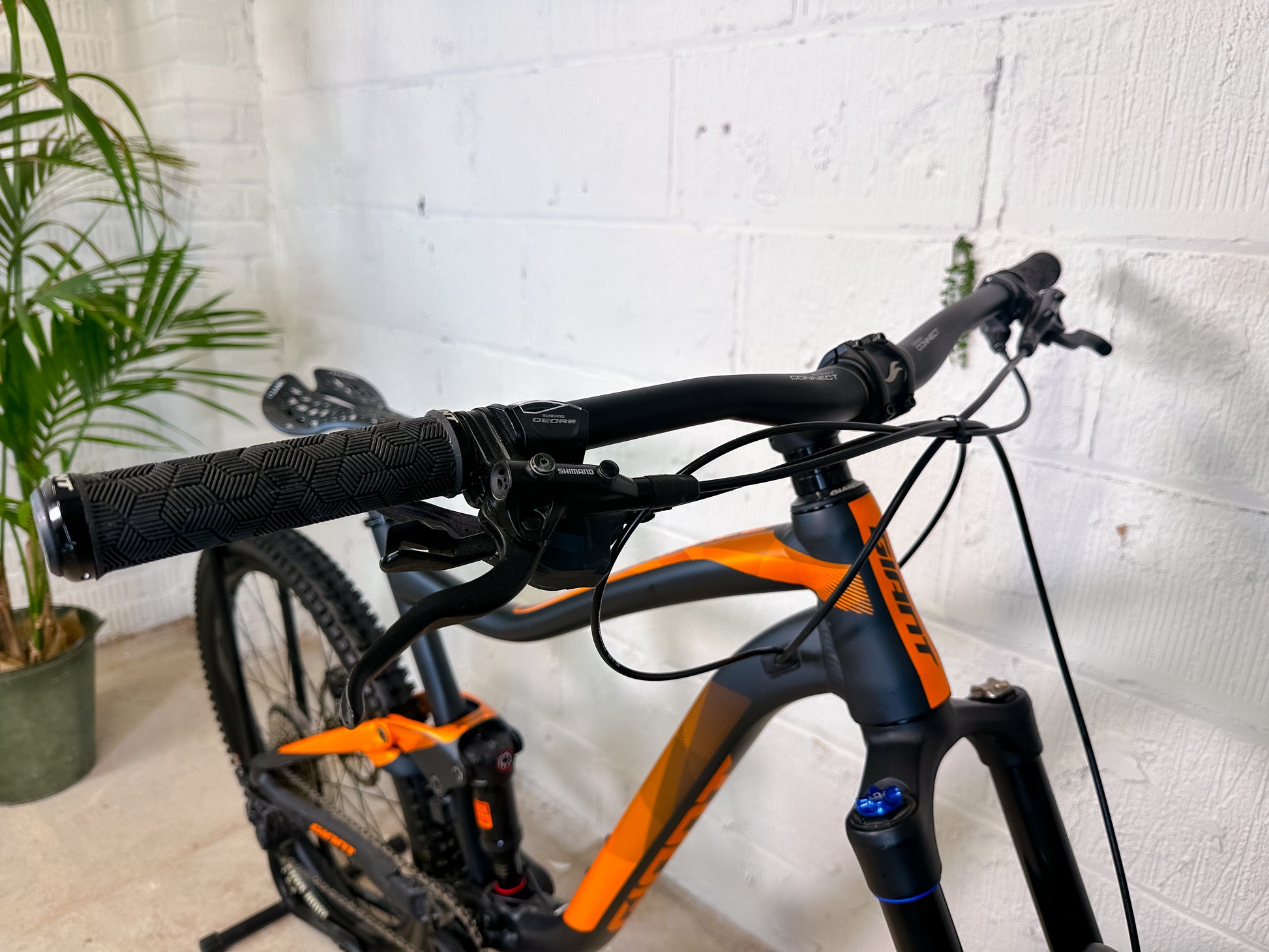

Handlebar
|
Giant Connect Trail, 780mm width, 31.8mm clamp
|
|
Stem
|
Giant Connect, 31.8mm clamp, 50mm length (S, M, L), 60mm length (XL)
|
|
Grips
|
|
|
Brakes
|
Shimano BR-MT400, 180mm rotors
|
|
Brake Levers
|
Shimano BL-MT400
|
|
Drivetrain
|
1x
|
|
Shifters
|
Shimano Deore, 10-speed
|
|
Front Derailleur
|
N/A
|
|
Rear Derailleur
|
Shimano Deore, Shadow+, 10-speed
|
|
ISCG Tabs
|
ISCG05
|
|
Chainguide
|
N/A
|
|

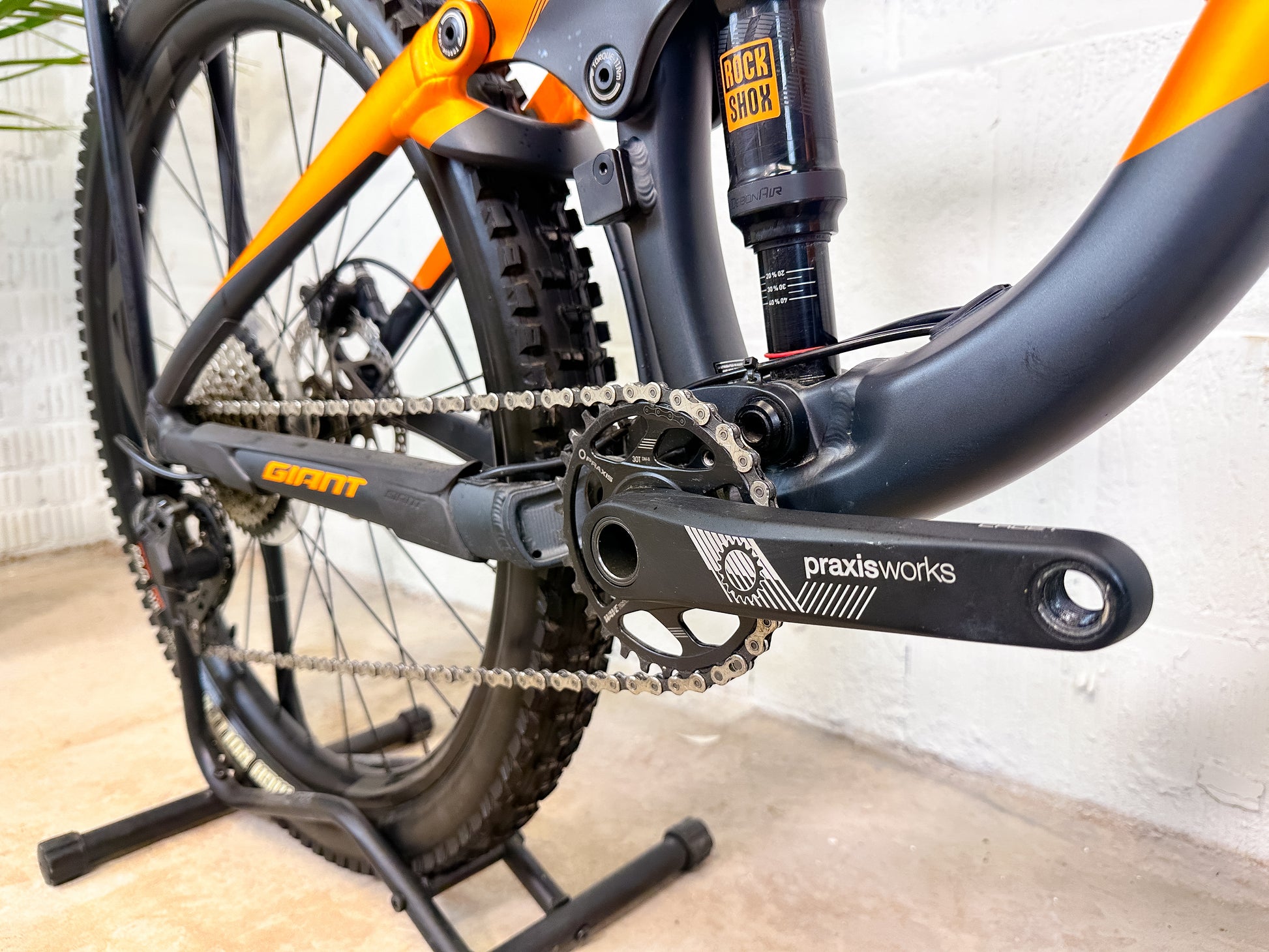

Cranks
|
Praxis Cadet, Boost, 170mm length (S), 175mm length (M, L, XL)
|
|
Chainrings
|
Praxis Cadet, 30 tooth
|
|
Bottom Bracket
|
Praxis BB-90 PressFit
|
|
Pedals
|
N/A
|
|
Chain
|
KMC X10-1, 10-speed
|
|

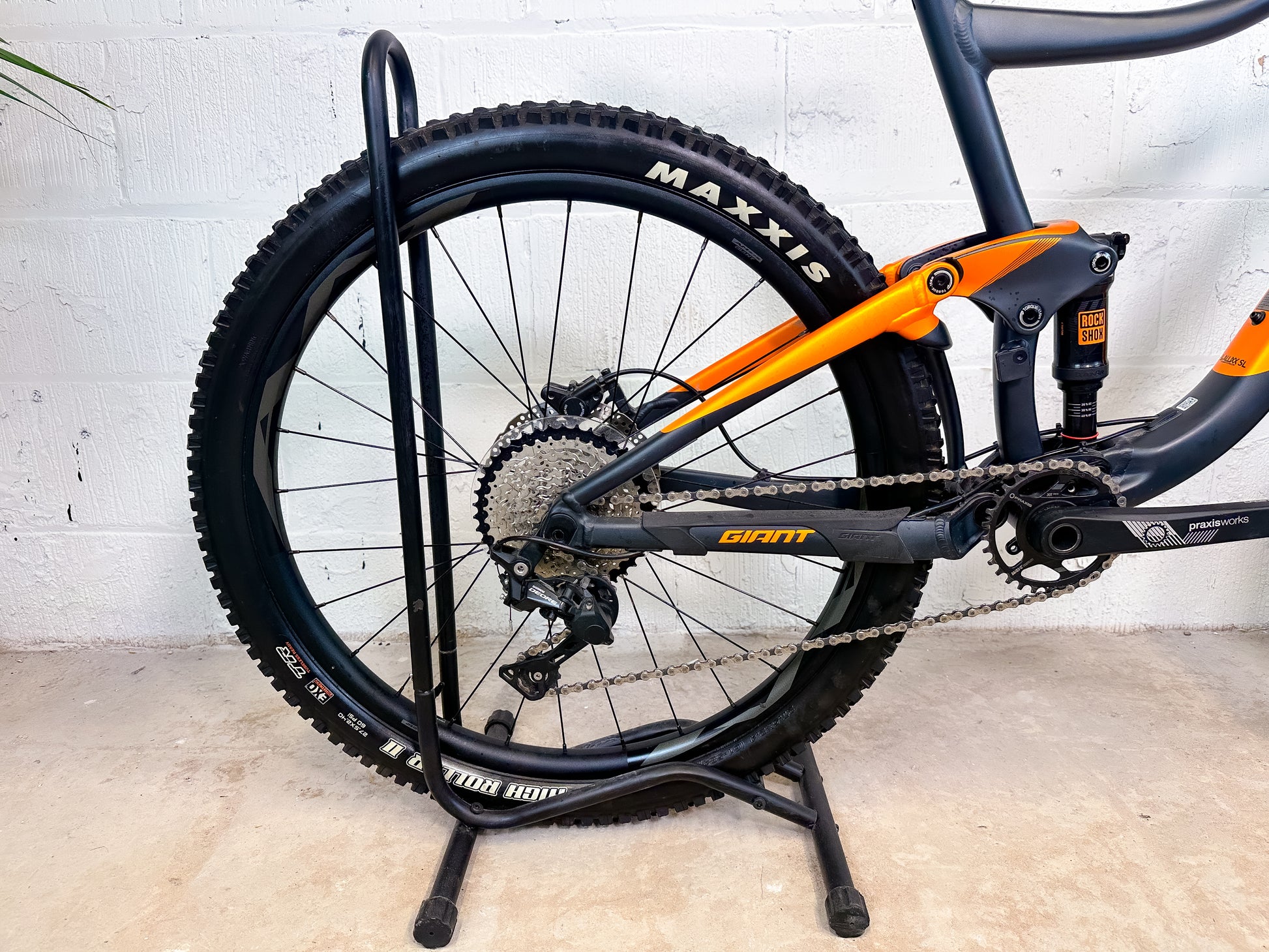

Cassette
|
Shimano Deore CS-HG500-10, 10-speed, 11-42 tooth
|
|
Rims
|
Giant AM 27.5, tubeless ready, sleeve-joint rim, 30mm inner width
|
|
Hubs
|
Giant Tracker Performance, sealed bearings, Boost
|
|
Spokes
|
Sapim
|
|
Tires
|
Maxxis High Roller II, 60 tpi, EXO, TR, tubeless, 27.5" x 2.5" WT (front), 27.5" x 2.4" (rear)
|
|
Saddle
|
Giant Contact (neutral position)
|
|
Seatpost
|
Giant Contact Switch dropper
|
|
Seatpost Diameter
|
30.9mm
|
|
Seatpost Clamp
|
Standard single bolt
|
|
Rear Dropout / Hub Dimensions
|
148x12mm Boost
|
