FRAME
|
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
|
|
|
SIZE
|
Size Split: 27.5: 13.5", 15" // 29: 17", 19", 21", 23"; Trapeze 27.5: 15" // 29: 17", 19"
|
|
|
FORK
|
X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout
|
|
|

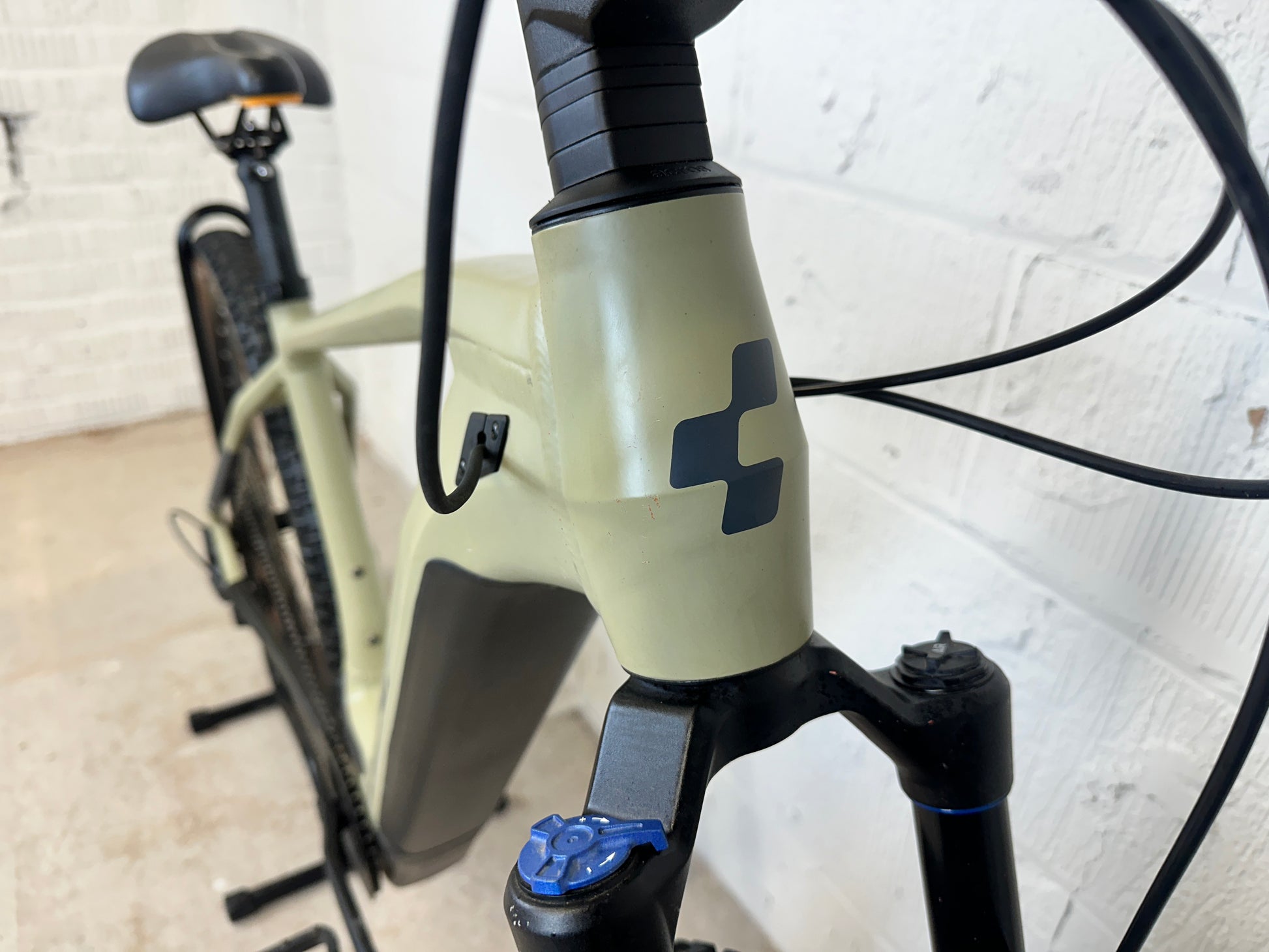

HEADSET
|
ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
|
|
|
STEM
|
CUBE Performance Stem E-MTB, 31.8mm
|
|
|
HANDLEBAR
|
CUBE Rise Trail Bar, 720mm
|
|
|

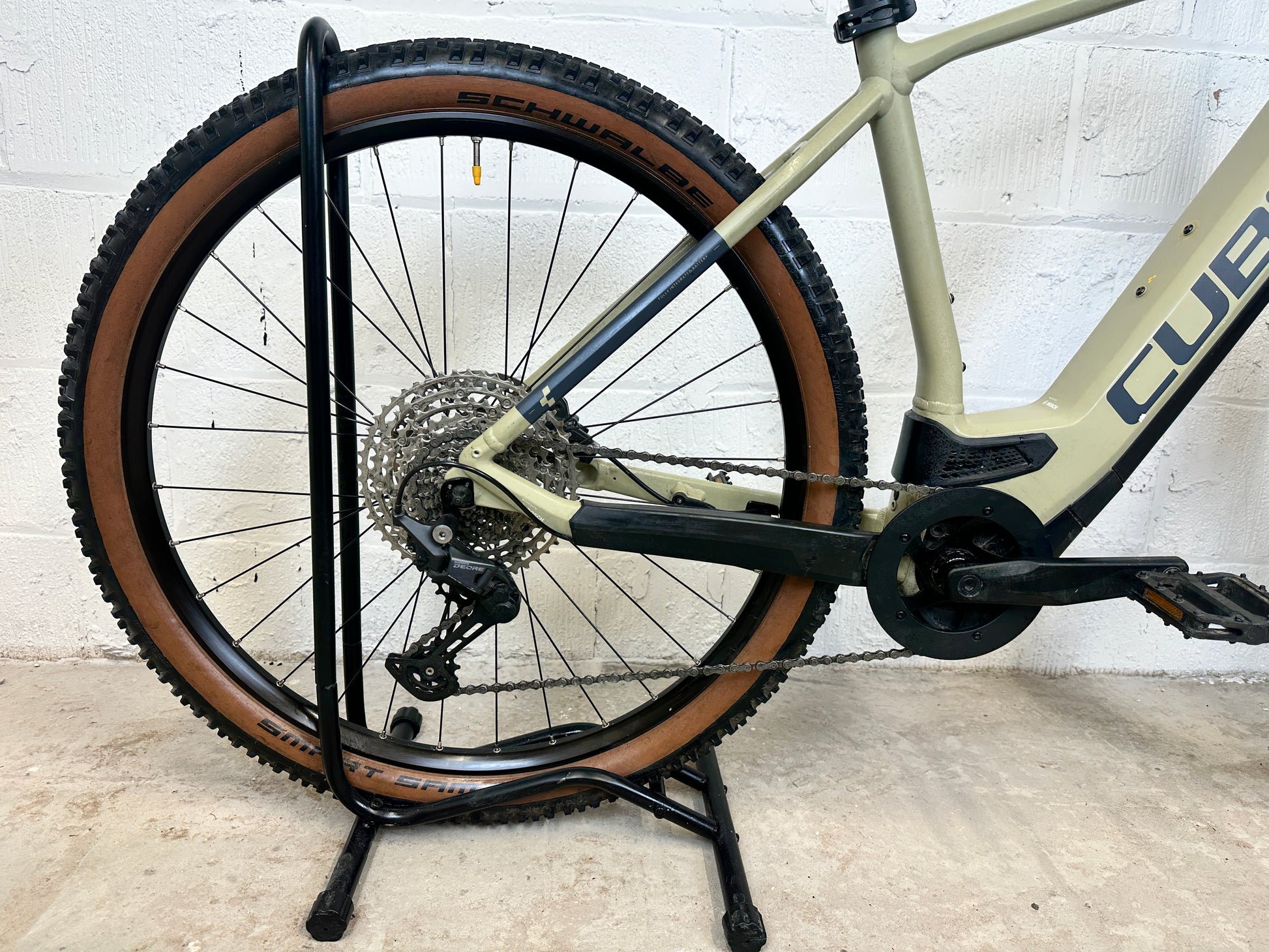

REAR DERAILLEUR
|
Sram SX Eagle™, 12-Speed
|
|
|
FRONT DERAILLEUR
|
N/a
|
|
|
BRAKES
|
Shimano BR-MT200, Hydr. Disc Brake (180/180)
|
|
|
CRANKSET
|
ACID E-Crank, 38T, 175mm
|
|
|
CHAIN
|
KMC X11
|
|
|
GRIPS
|
ACID React Pro
|
|
|
SHIFT
|
Shimano Deore SL-M5100, Rapidfire-Plus
|
|
|
CASSETTE
|
Shimano Deore CS-M5100, 11-51T
|
|
|
Rims
|
CUBE EX30, 32H, Disc, Tubeless Ready
|
|
|
Hubs
|
FRONT HUB
Shimano HB-MT400-B, 15mm, Boost, Centerlock
REAR HUB
Shimano FH-TX505, QR, Centerlock
|
|
|
TYRES
|
Schwalbe Smart Sam, Active, 2.60
|
|
|
SADDLE
|
Natural Fit Sequence
|
|
|
SEAT POST
|
CUBE Performance Post, 30.9mm
|
|
|
SEATCLAMP
|
CUBE Varioclose, 34.9mm
|
|
|
BATTERY
|
Bosch PowerTube 625
|
|
|
DRIVE UNIT
|
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
|
|
|
DISPLAY
|
Bosch Purion
|
|
|
CHARGER
|
Bosch 2A
|
|
